Let The Drop(N)Tell System Protect Your Fragile Product

The DROP-N-TELL system includes two warning labels and is manufactured in six different Granges of 5G, 10G, 15G, 25G, 50G and 100G.

The device monitoring 5 times the force of gravity is very force of gravity requires a greater impact to activate.

Attach the DROP-N-TELL to your product or shipping container by removing the liner on the back to expose the adhesive or screw/nail

it using the holes in each end.

RESETTABLE DROP-N-TELL可復(fù)位Drop(N)Tell

The resettable DROP-N-TELL can be reset and reused up to 50 times.

Simply bend the end of a paper clip and push it gently in the holes on each end of the indicator until the arrow shows red.

Upon receiving an impact, the arrows will show blue.

NON-RESETTABLE DROP-N-TELL

This DROP-N-TELL can be used only once. It cannot be reset. Remove the bar across the arrows.

Upon receiving an impact, the arrows will show blus.

OPTIONAL FEATURES:

A Large 8″×5″ companion label pictured below is also available for a small additional charge.

DROP-N-TELL SPECIFICATIONS

Range: Standard DROP-N-TELL set points are 5,10,15,25,50and 100G’s.

Indication: Blue arrow snaps into view in direction of shock.

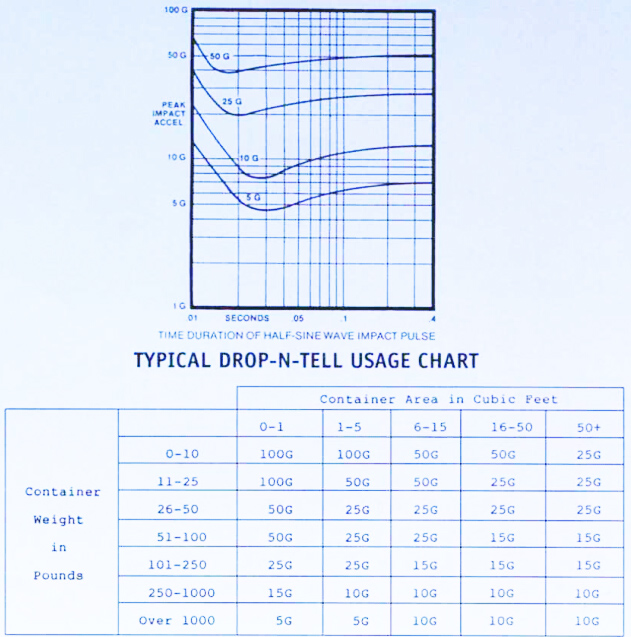

Reference Shock: Design parameters were referenced to 1/2 sine wave shock pulse.See response curves below.

Sensitivity: Bi-directional , two opposite directions , two arrow displays.

Reset: Pin reset through access hole in each end (cannot be mistakenly reset).

Life: In excess of 50 cycles of switch and reset.

Accuracy: Within +/-20% of the calibration curves of figure below.

  1英磅（Lbs）=0.4536KG         1立方英尺（cubic feet）=0.028立方米

Time duration of half-sine wave impact pulse

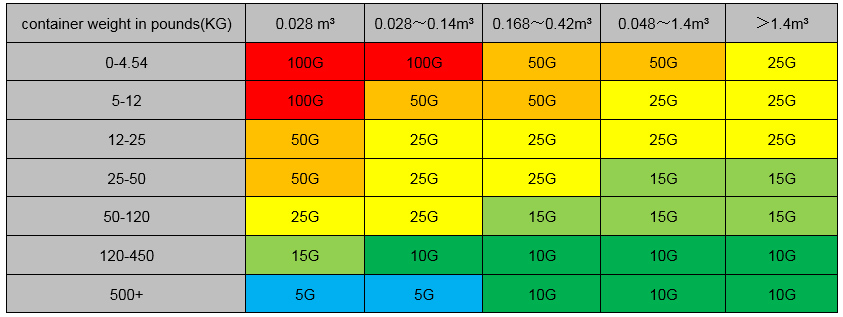

TYPICAL DROP-N-TELL USAGE CHART

The chart shown above should be used only as a basic guide. DROP-N-TELL activation depends upon the type and amount of cushioning used to protect a product in transit . Drop height will also affect activation.

Formula For Calculating Cubic Feet

Length × width ×depth(inches)/1728
